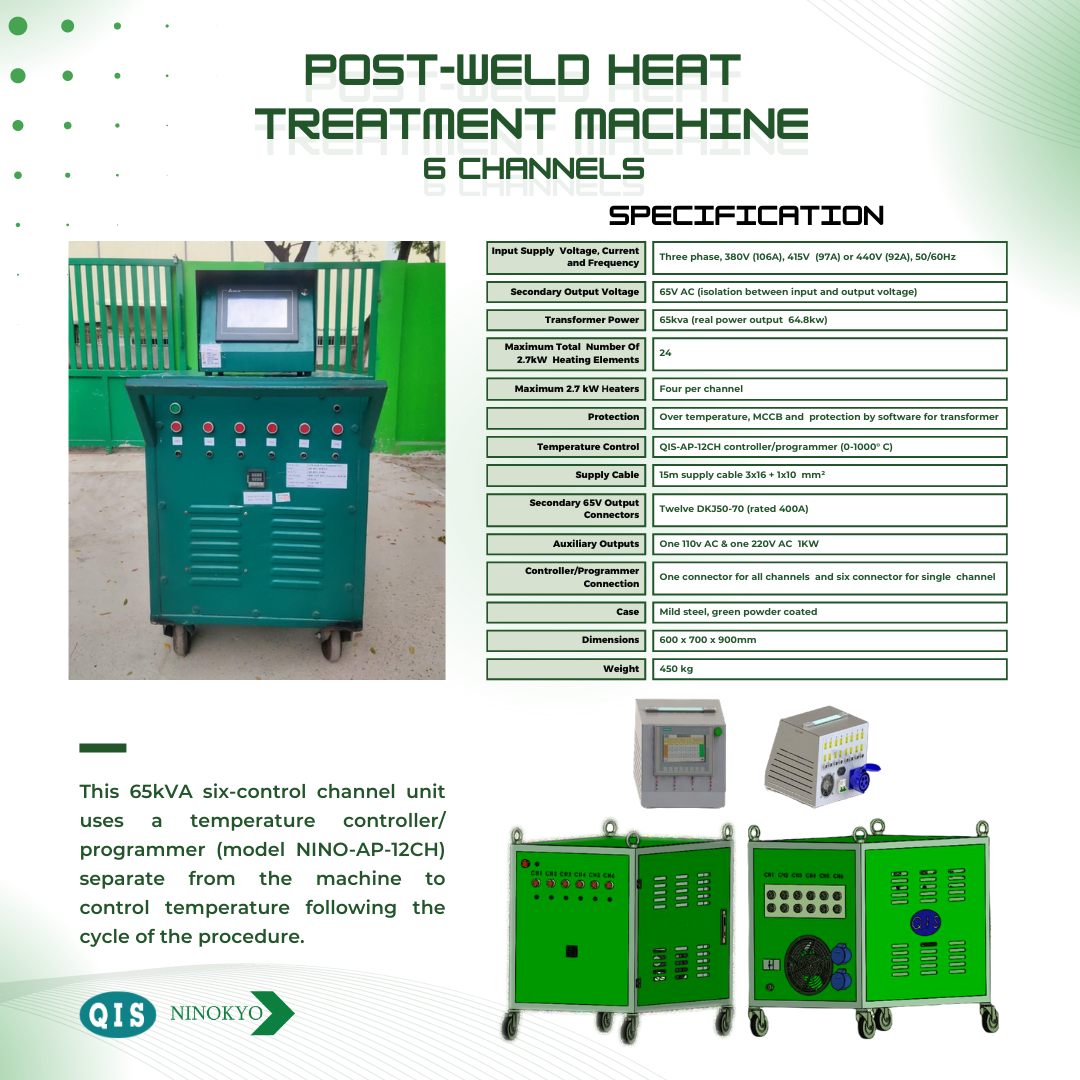

6-CHANNEL PWHT MACHINE
This equipment has a power capacity of 65kVA and six control channels, using a separate temperature control/input unit (NINO-AP-12CH model) to regulate the temperature cycle of the process. It can control a maximum of 24 ceramic heating circuits with a power rating of 65V, 45A, 2.7kW. This machine is used for preheating or post-weld heat treatment in applications such as pipe welding, structural welding, tank welding, fabrication welding, and other processes that require controlled heating.
One channel can connect to 4 heating circuits.
The machine is user-friendly, easy to connect, lift, and transport on-site or within the workshop.
If you would like more information about the machine, pricing, or warranty details, please contact us at:
