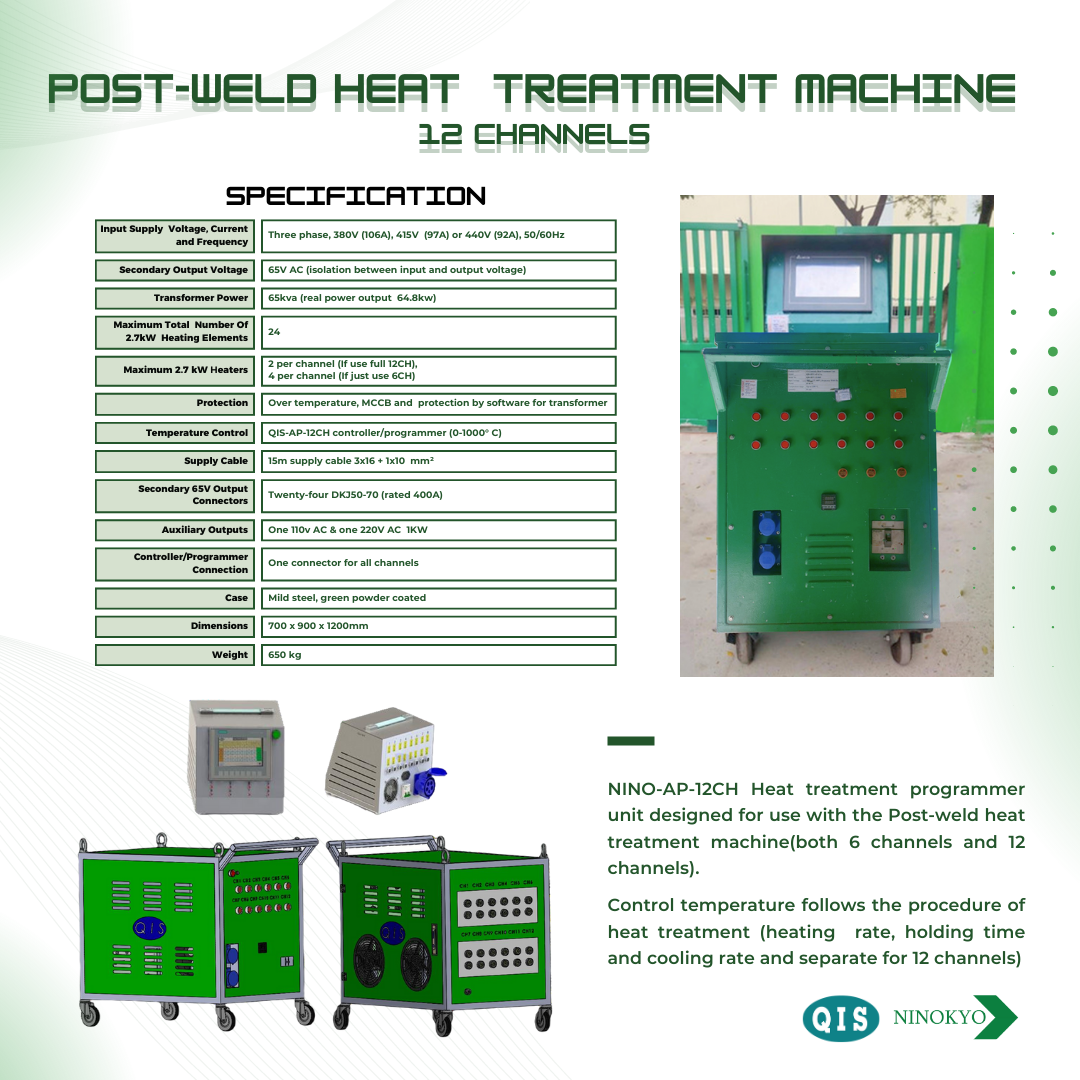

12-CHANNEL PWHT MACHINE
This 12-CHANNEL PWHT MACHINE has a power capacity of 65KVA and utilizes a separate temperature control/inpu
odule (NINO-AP-12CH model) to regulate the temperature according to the process cycle. It can control up to 24 ceramic heating circuits with a power rating of 65V, 45A, 2.7kW. This machine is used for preheating or post-weld heat treatment in pipe welding, structural welding, tank welding, fabrication, and other processes that require controlled heating.
When using all 12 channels, one channel can connect to 2 ceramic heating circuits. If only 6 channels are used, one channel can connect to 4 ceramic heating circuits. It is user-friendly, easy to connect, lift, and transport on construction sites or within workshops.
